LPF Battery
Energy storage is a key part of energy transformation and power transformation, and we has always been committed to providing the best energy storage solutions for the world. Safe, efficient and economical electrochemical energy storage systems are widely adapted to power generation, power grids and electricity fields, helping to optimize the energy structure, strengthen the safety of the power system, and reduce the cost of energy use.
Products Relevant to LFP Technologies
Liquid Cooling: HJ-One
High Security:
- Lithium iron phosphate cell with high thermal stability
- IP56 protection class for outdoor applications
- C5 corrosion protection,20 years of reliability
- Fire prevention with independent fire fighting system
Long Service Life
- Equipped with advanced batteries and the 12000 cycle life
- Bulk variable frequency liquid cooling system, the temperature difference inside the battery cluster is <3°C, and the life is increased by 33%
High Integration
- Modular design, compatible with 600-1500V systems
- Independent water cooling system, cooling worry free
- Modular high energy density design saves 50% floor space
- Support on board transportation, reduce site installation costs and commissioning time
Liquid Cooling: HJ-One
High Security:
- Lithium iron phosphate cell with high thermal stability
- lP56 protection class for outdoor applications
- C5 corrosion protection,20 years of reliability
- Fire prevention with independent fire fighting system
Long Service Life
- Equipped with advanced batteries and the 12000 cycle life
- Bulk variable frequency liquid cooling system, the temperature difference inside the battery cluster is <3°C, and the life is increased by 33%
High Integration
- Modular design, compatible with 600-1500V systems
- Independent water cooling system, cooling worry free
- Modular high energy density design saves 50% floor space
- Support on board transportation, reduce site installation costs and commissioning time
UPS Solution
Battery Cell safety
- Lithium iron phosphate cell with high thermal stability
System security
- BMS control protects dual redundant contactor control and shunt trip of moulded case circuit breaker
- Short-circuit protection Dual redundancy: fuse protection, magnetic trip of MCCB
DC/DC auxiliary source power supply
- Secondary source dual redundancy reduces the risk of AC power interruption
- Black start when the grid is out of power
Single cabinet exit policy
- A single cabinet fault A single cabinet exits to improve system availability
Low temperature rise
- The highest rate of power down temperature rise of about 20℃, only natural cooling can meet the requirements of use, the system is simple and reliable
Flexible wire system
- Supports three-wire and two-wire UPS systems
Flexible configuration
- Supports a wide voltage range of 320 to 691V, and is compatible with high and low voltage platforms
- Support 32.768-49.152kWh single cabinet wide power range configuration, reduce excess power distribution
Flexible transport
- Support full container transportation, reduce packaging materials and transportation costs, reduce site installation and commissioning costs and length
- Support bulk shipping, flexible shipping and spare parts shipping

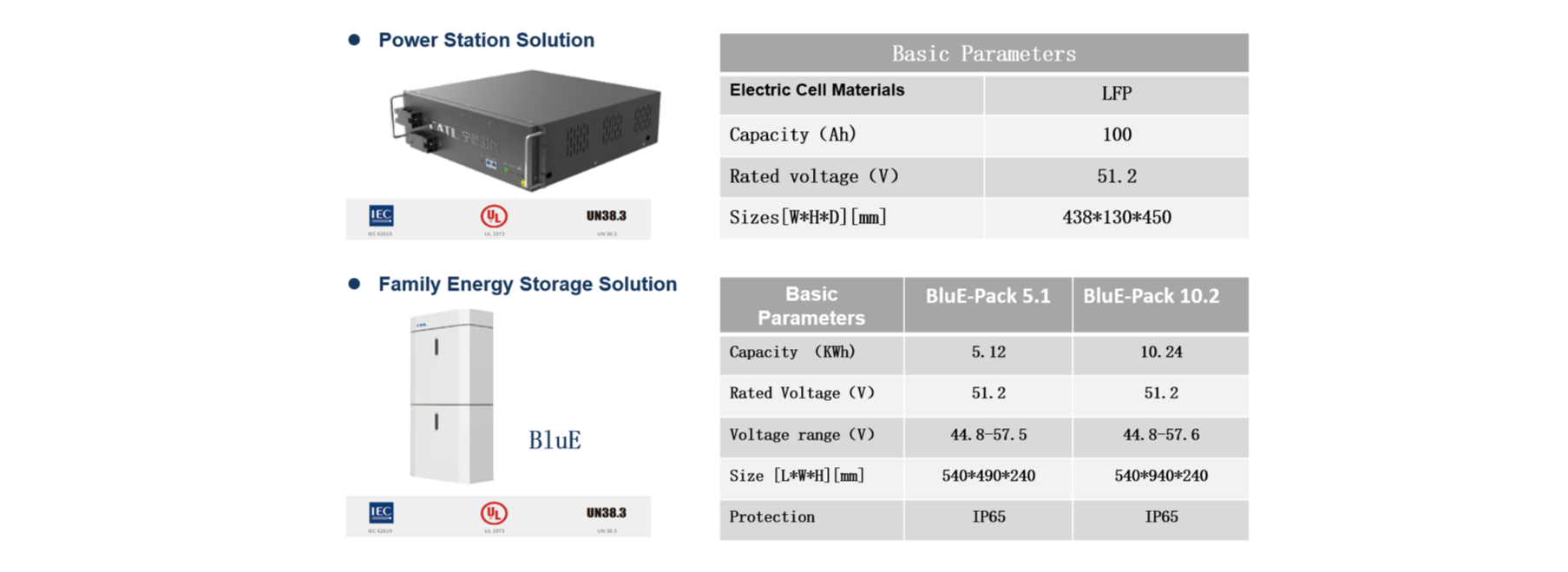

Power Station Solution & Family Energy Storage Solution (BLuE)
Industrial Energy Storage Example
Cement Plant Energy Storage
Cement production is a large power consumption, power consumption is great, power facilities construction and power consumption are not negligible factors, power facilities construction period is long, difficult to expand, to solve the problem of power facilities, is to solve the bottleneck of cement production; Reducing the cost of electricity consumption is to reduce the cost of products, increase the efficiency of enterprises, and enhance the competitiveness of enterprises from the fundamental and source.
Cement energy storage project adopts modular container design, 0.5MW/2MWh group, a total of 16 groups, a total capacity of 8MW/32MWh, factory pre-assembly, to ensure the performance and quality of products and systems, shorten the construction cycle, for customers to win time; Alleviating the demanding capacity bottleneck and saving the investment in power construction; The energy storage system uses the power price difference to cut peaks and fill valleys, significantly reducing the cost of power consumption, and turning the traditional sunk cost into a power investment that can produce benefits, and winning benefits for enterprises.
The safety of large-capacity energy storage facilities has always been the focus of customer attention. The energy storage system selected by HyjadeChain adopts lithium iron phosphate (LFP) battery cell, which guarantees the safety and reliability of products in all aspects from material selection to system control, from battery cell to system level; Each module is equipped with a multi-channel temperature sensor; At the system level, set multi-level protection, once the potential failure of the system is found, the corresponding protection measures are taken in time, safety is always our fundamental guarantee.
